Micro LED Driver (SugarCube)

Reference: DRV-LEDC15MX

$30.10
In-Stock item: Allow 5-7 business days for delivery.

Two-Wire self regulating 'SugarCube' Micro LED Driver (Case Version 2)

Quantity
DRV-LEDC15MX

Add to wishlist

help_outlineAsk about product
Micro LED Driver (SugarCube)

Micro LED Driver (SugarCube)

Two-Wire self regulating 'SugarCube' Micro LED Driver (Case Version 2)

I accept privacy policy rules

  • Security policy: SSL Secured. For more information, see our 'Secure payment' link below. Security policy: SSL Secured. For more information, see our 'Secure payment' link below.
  • Delivery policy: USPS with tracking. For more information, see our 'Deliveries & Returns' link below. Delivery policy: USPS with tracking. For more information, see our 'Deliveries & Returns' link below.
  • Return policy:  Within 7 days of delivery. For more information, see our 'Deliveries & Returns' link below. Return policy: Within 7 days of delivery. For more information, see our 'Deliveries & Returns' link below.

Power LEDs with this efficient, small size 'SugarCube' LED driver. (Case Version 2)

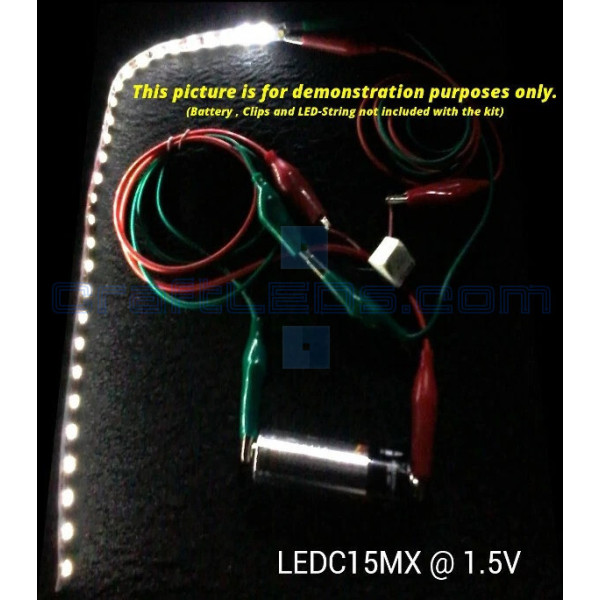

Designed for 1.5 - 3 Volt operation and will run for over 100 continuous hours using a single D cell or 30 hours from a single AA and will run on voltages less than 1V while still having the ability to drive LEDs brightly!

Use this sugar cube sized LED driver to illuminate typical white LEDs two-wired in series, parallel configurations! This easy to use LED driver will allow simple lighting on artwork, scale models, crafts and more! This small footprint converter can be built directly into your work! Easy common ground configuration make connecting a breeze.

The LDEC15MX can be used with typical LEDs with forward voltages of 3.5V to 4.1V @ 20mA forward current ratings. Illuminate a string of LEDs wired in series (up to 10) with no noticeable decrease in light emission or parallel (up to 15).

The driver is self regulating, so if you are using a series of 3 or 10 LEDs, the output voltage will adjust accordingly up to the LED and driver maximums. In parallel mode the current will self regulate to the ratings of the LEDs and driver itself, using more current for 15 LEDs wired in parallel or less if using a smaller number of LEDs.



Includes:

    • Detailed Instructions

    • (1) LEDC15MX - Pulse switching DC/DC converter Detailed Instructions (case color may vary)

 Two-Wire Version

LEDC15MX (Series/Parallel)

Size

10mm x 10mm x 9mm

Weight

4g

Input

1.5 - 3V DC

Output

~4 - 30V @ 50-90mA Pulses

LED Specs

Typical: If=20mA, Vf=3.4 - 4.1V
Super-Bright, Ultra-Bright, Mega-Bright, Hyper, COB



* Converter may use a single AA, AAA, C, D cell, Solar Cells!

* Converter may also be powered from standard wall adapters. Ratings: 1V - 6V@100mA Max.
