Low-Voltage LED Lighting kit.
Fiber Optic, LED Lighting Kit
Fiber Optic Low-Voltage LED Lighting kit.
Security policy: SSL Secured. For more information, see our 'Secure payment' link below.
Delivery policy: USPS with tracking. For more information, see our 'Deliveries & Returns' link below.
Return policy: Within 7 days of delivery. For more information, see our 'Deliveries & Returns' link below.
Super Efficient, Wide Input LED driver (Case Version 1)

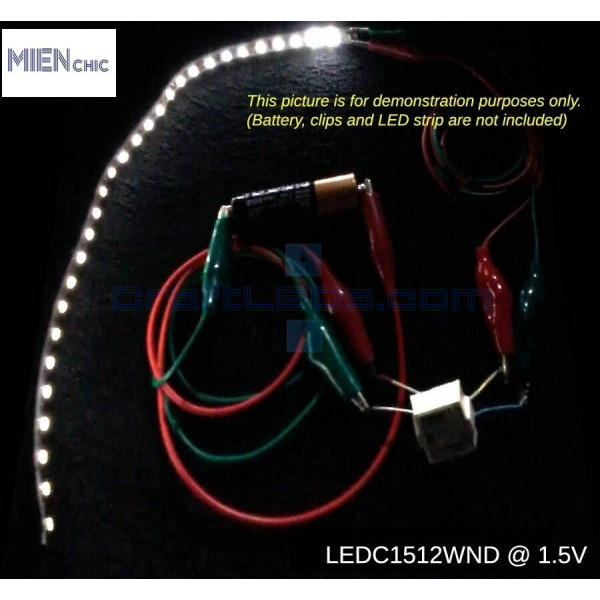

Uses batteries or wall adapters! Over 100 continuous hours using a single D cell or 30 hours from a single AA. Design will operate on input voltages less than 1V!
This LED driver kit allows easy lighting on artwork, scale models and more! Easy to use - power in / power out. Can be used to Illuminate a string of LEDs wired in series (up to 15) with no noticeable decrease in light emission or parallel (up to 20) using 1.5V -12V power sources! This small footprint converter can be incorporated directly into your work.

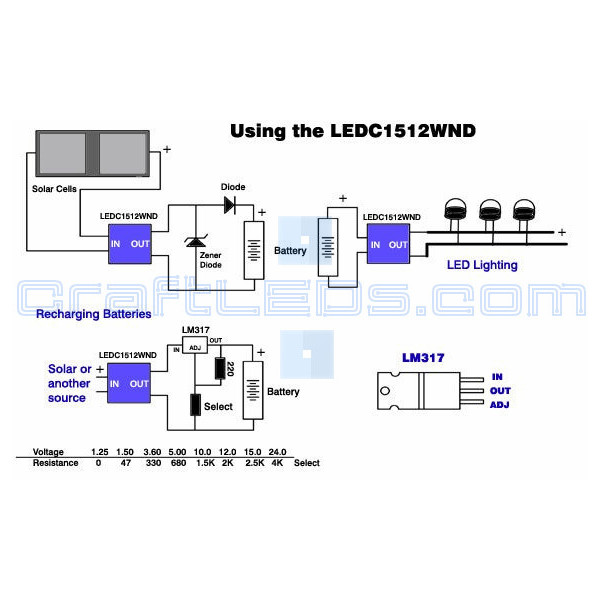

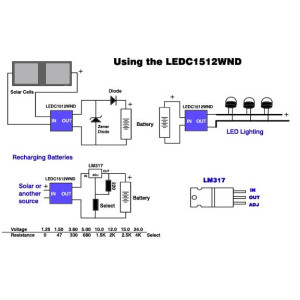

A great converter to incorporate into your solar lighting designs where you are using a solar cell which outputs 1.0 volt! This converter will step it up to to a useful voltage and light 10 LEDs! Depending on your design you may use the same converter to trickle charge the batteries for future storage! Have you ever needed a good source of backup lighting during those power outages? Make a simple 5 LED bright light source using your dead AA, C or D batteries! As long as your battery has .9 Volt or more (that's point 9) you can use it! Why waste that energy!
LEDC1512WND - Pulse switched DC/DC converter
14mm x 12mm x 8mm
1.0/2.4V - (2.5-12V wResistor) @150mA Max. DC
5 SuperBright White LED
3 ft. Fiber Optic conduit
24AWG solid copper hook up wire
Copper soldering strips
Detailed Instructions* Converter may use a single AA, AAA, C, D cell, Solar Cells!
* Converter may also be powered from standard wall adapters. Ratings: 1.5V through 12V@100mA Max.
