Hobby LED Lighting Kit
Hobby LED Lighting Kit
Hobby LED Lighting Kit
New Bike Light LED Drivers - Coming Soon!
$15 off $150.  Use Code: YMBBJZS4

Hobby LED Lighting Kit

Reference: KLT-KLEDC15WND

$33.97
In-Stock item: Allow 5-7 business days for delivery.

Low-Voltage LED Lighting kit.

Quantity
KLT-KLEDC15WND

Add to wishlist

help_outlineAsk about product
Hobby LED Lighting Kit

Hobby LED Lighting Kit

Low-Voltage LED Lighting kit.

I accept privacy policy rules

  • Security policy: SSL Secured. For more information, see our 'Secure payment' link below. Security policy: SSL Secured. For more information, see our 'Secure payment' link below.
  • Delivery policy: USPS with tracking. For more information, see our 'Deliveries & Returns' link below. Delivery policy: USPS with tracking. For more information, see our 'Deliveries & Returns' link below.
  • Return policy:  Within 7 days of delivery. For more information, see our 'Deliveries & Returns' link below. Return policy: Within 7 days of delivery. For more information, see our 'Deliveries & Returns' link below.

Super Efficient, Wide Input LED driver  (Case Version 1)

Uses batteries or wall adapters! Over 100 continuous hours using a single D cell or 30 hours from a single AA. Design will operate on input voltages less than 1V!

This LED driver kit allows easy lighting on artwork, scale models and more! Easy to use - power in / power out. Can be used to Illuminate a string of LEDs wired in series (up to 15) with no noticeable decrease in light emission or parallel (up to 20) using 1.5V -12V power sources! This small footprint converter can be incorporated directly into your work.

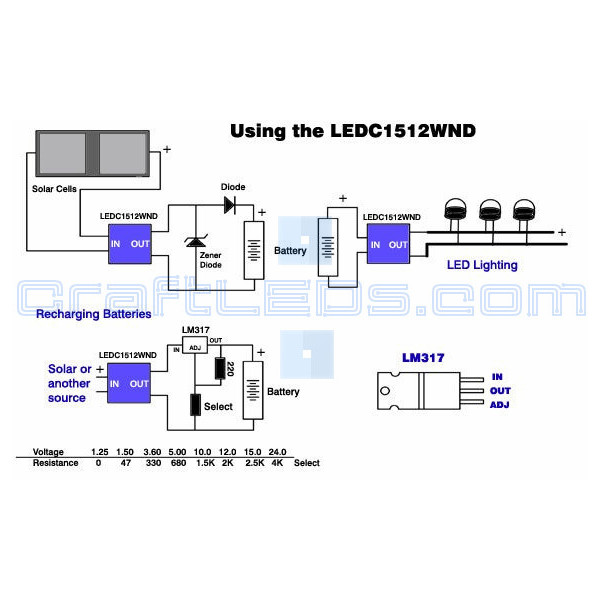

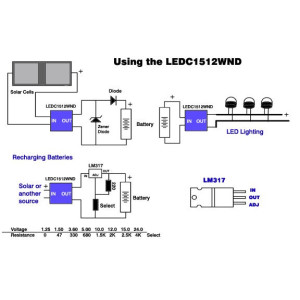

A great converter to incorporate into your solar lighting designs where you are using a solar cell which outputs 1.0 volt! This converter will step it up to to a useful voltage and light 10 LEDs! Depending on your design you may use the same converter to trickle charge the batteries for future storage! Have you ever needed a good source of backup lighting during those power outages? Make a simple 5 LED bright light source using your dead AA, C or D batteries! As long as your battery has .9 Volt or more (that's point 9) you can use it! Why waste that energy!

Kit Includes:


  • LEDC1512WND - Pulse switched DC/DC converter

     Two-Wire

    LEDC1512WND

    Size

    14mm x 12mm x 8mm

    Weight

    8g

    Input

    1.0/2.4V - (2.5-12V wResistor) @150mA Max. DC

    Output

    ~6-50V@100-250mA Pulses

    Consumption

    5-25mA

  • 5 SuperBright White LED

  • 24AWG solid copper hook up wire

  • Copper soldering strips

  • Detailed Instructions

    * Converter may use a single AA, AAA, C, D cell, Solar Cells!
    * Converter may also be powered from standard wall adapters. Ratings: 1.5V through 12V@100mA Max.
